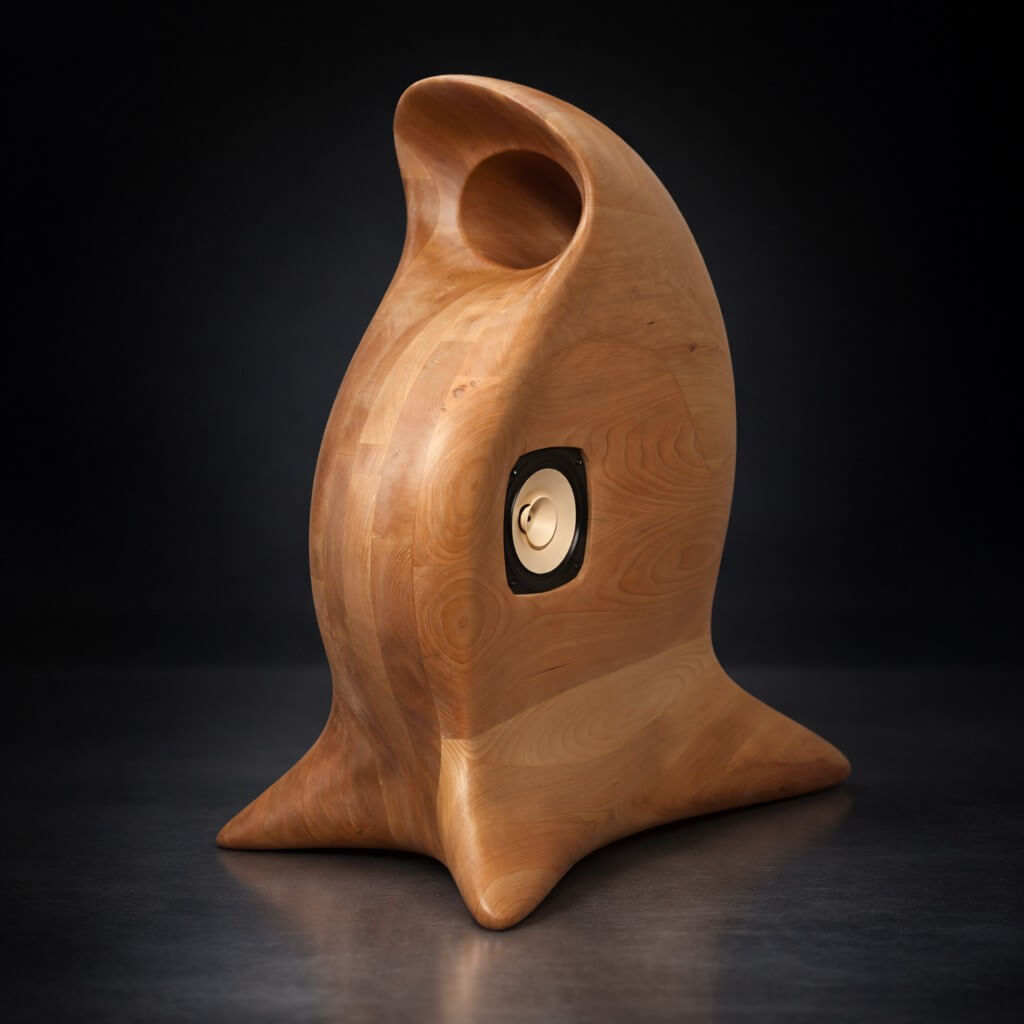

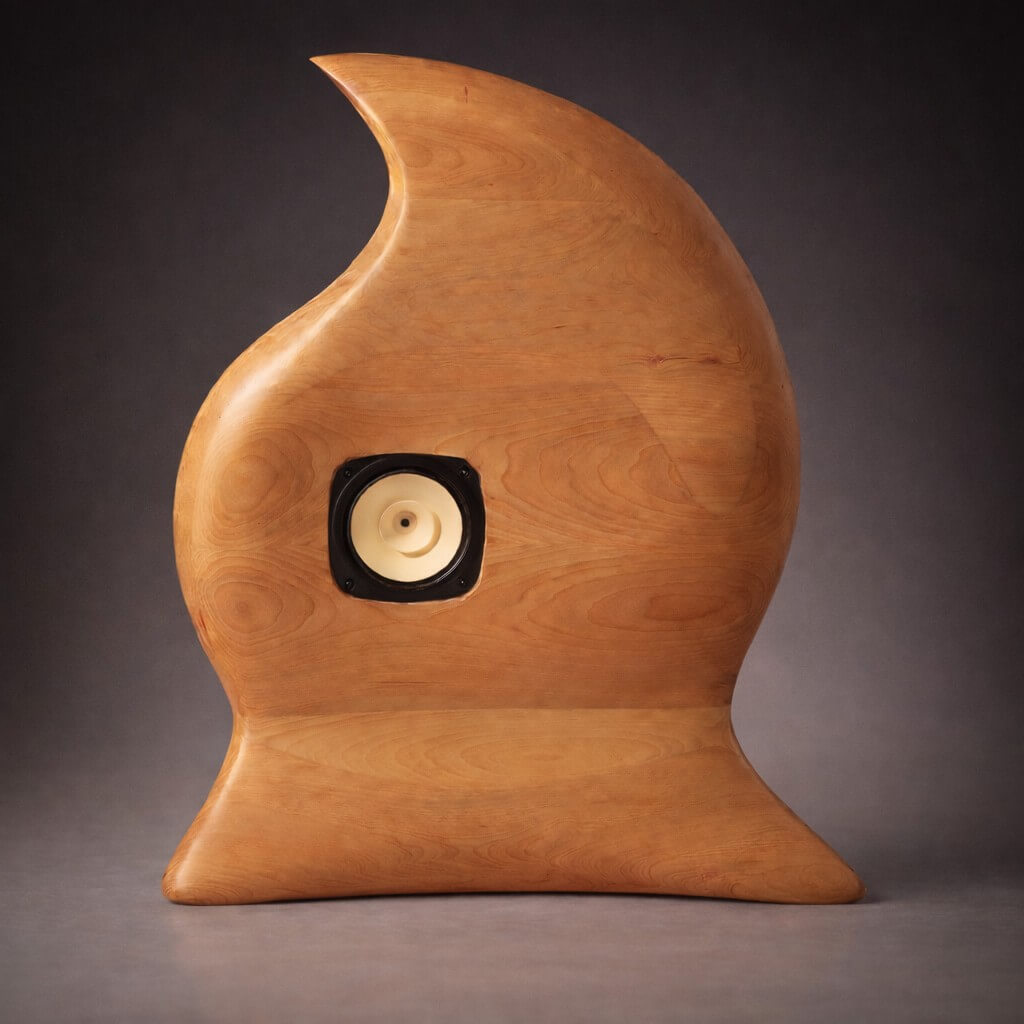

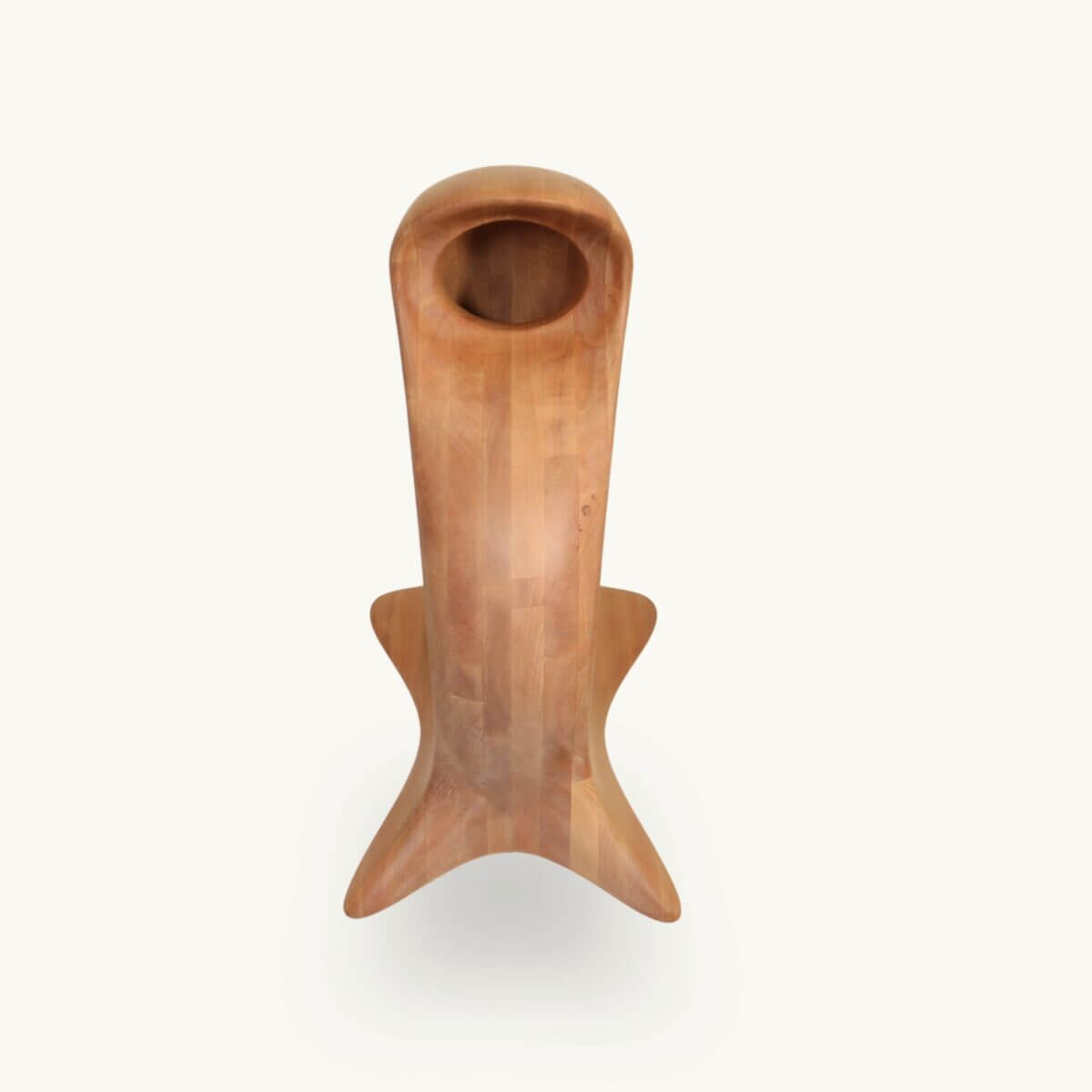

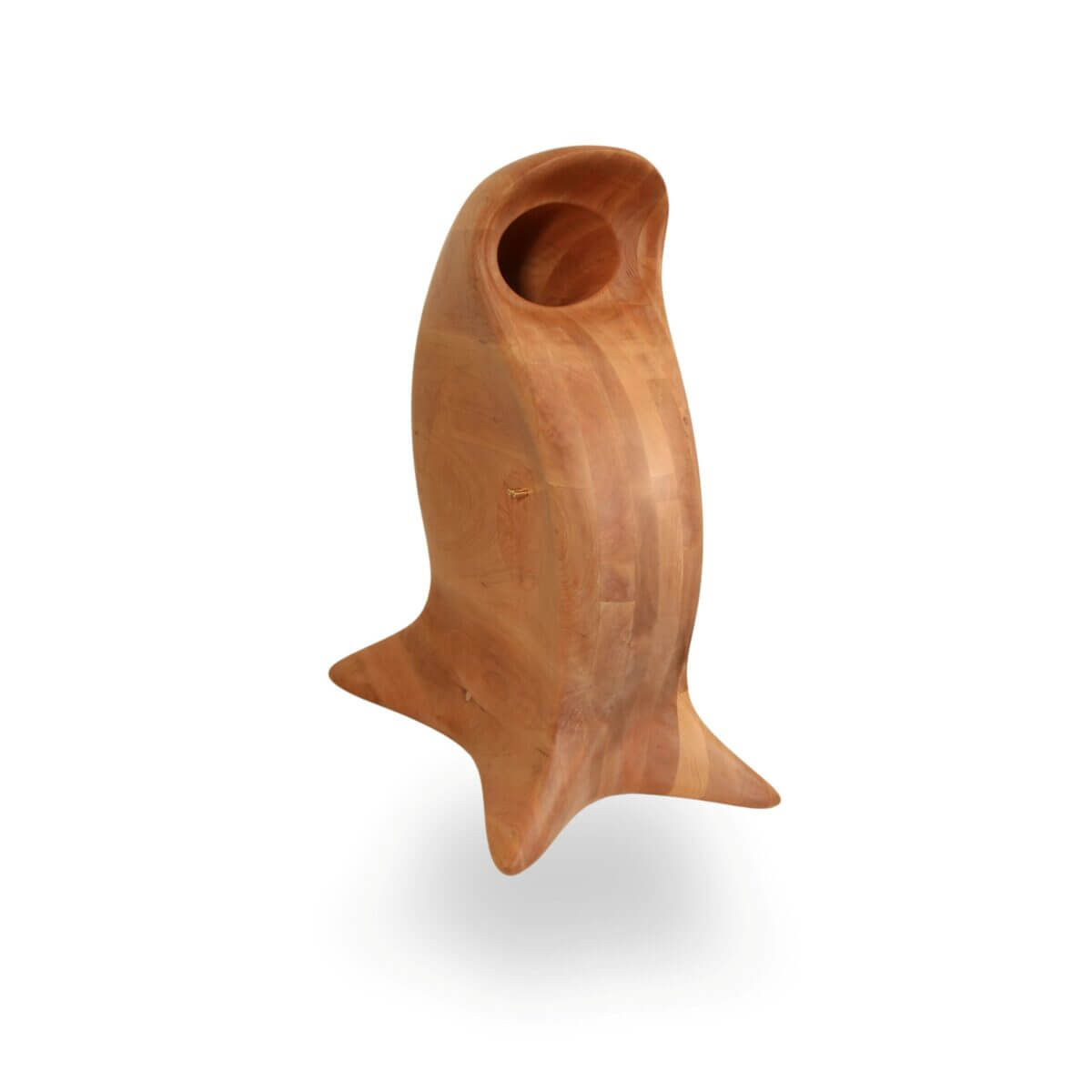

HYPE Back-Loaded Horn Speaker – sculptural high-fidelity wooden audio design
Why "Hype"?
🎵 Pure Full-Range Fidelity – No crossover distortion, just uninterrupted sound
📐 Sculptural Spiral Geometry – Inspired by natural spirals, tuned for sonic waveguidance
🌳 Cherry Wood Craftsmanship – Visually warm, acoustically refined
🔊 Room-Filling Bass – Quarter-wave tuned horn down to ~34 Hz
🌀 Precision-Loaded Dynamics – Compression ratio ~1.7:1 for enhanced clarity and energy
Premium Solid American Black Cherry Wood Construction – Handcrafted in solid or laminated cherry wood for natural acoustic warmth and refined visual character.

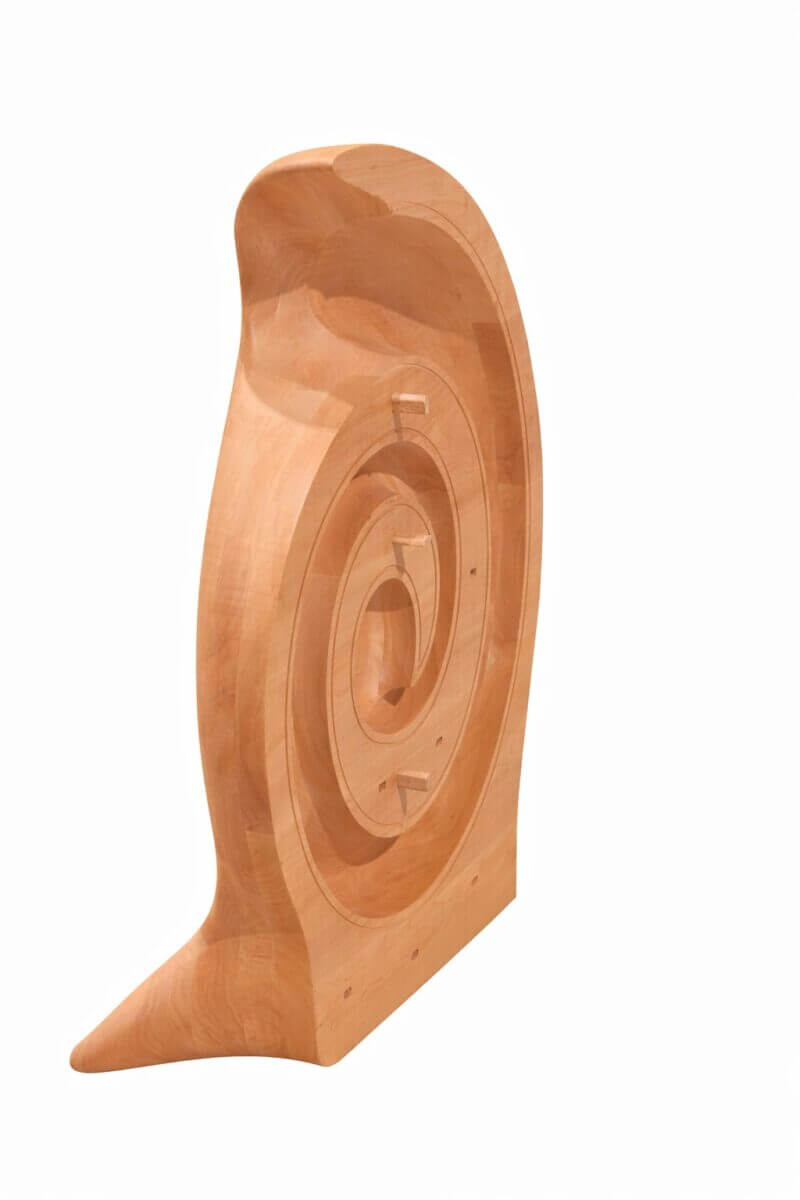

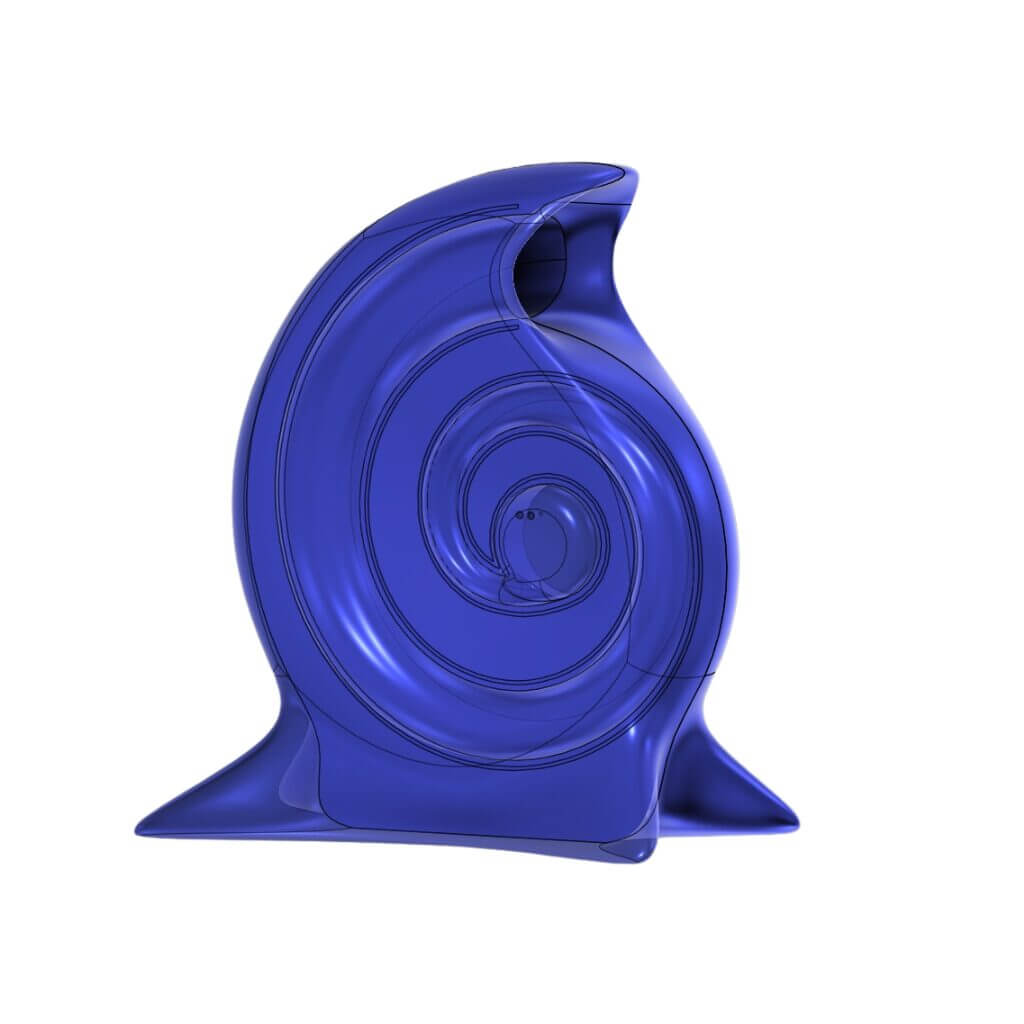

Back-Loaded Horn Acoustic Design – Spiral-form enclosure with a 2.5-meter internal path enhances bass extension while preserving midrange purity.
Single Full-Range Driver Architecture – Delivers seamless, crossover-free fidelity for a pure and uninterrupted sound experience.
Sculptural Spiral Geometry – Inspired by natural spirals and tuned for precise wave propagation and sonic balance.
Advanced CNC Precision – Engineered and milled to achieve perfect curvature, internal symmetry, and acoustic consistency.
Natural Oil or Matte Finish Options – Enhances the cherry wood’s warmth and texture while providing durable protection.
Fully Customizable – Available with driver upgrades, wood variations, or integrated super-tweeter options upon request.
Technical Specifications:
- System Type: Back-Loaded Horn (BLH) – single full-range 8″ driver (Fostex FE206NV2 class)
- Internal Path Length: ~2.5 m spiral acoustic channel
- Compression Ratio: ~1.7 : 1
- Tuning Frequency: Quarter-wave tuned at ~34 Hz
- Internal Volume: ~75 L
- Wall Thickness: 30 mm (min.)
- Horn Throat: 130 cm² (oval)
- Horn Mouth: 500 cm² (oval)
- Efficiency: High – optimized for 2–8 W tube amplifiers or refined low-power solid-state amps
Acoustic Performance:
- Bass: Deep, tight, and room-filling
- Midrange: Open, dynamic, and holographic
- Treble: Extended and lively
- Propagation Delay: ~7.3 ms rear-wave delay for enhanced spaciousness
Finish Options:
- Finish Choices: Clear Danish Oil / Hardwax Oil / Matte Polyurethane
- Wood Choices: Cherry (featured), Walnut, Oak, and others upon request
- Customization: Driver upgrades, integrated super-tweeter, or bespoke tuning available
Dimensions:
- Width: 910 mm
- Depth: 300 mm
- Height: 910 mm
- Weight: Varies depending on wood selection
Each Nexart piece is finished by hand with professional, food-safe premium hard-oil — allowing the colour to soak into the wood fibres rather than sitting as a surface coating — giving a natural, tactile luxury for the senses.
Certain finishes can also be formulated for outdoor resilience — on request.
Our colour palette is presented on European oak.
Please note — these tones are reference expressions, not rigid codes.
Every tree grows under different light, soil and climate.
Even within the same species, natural shade, grain density and fibre structure can shift subtly — and those nuances will influence the way each pigment, oil and light reflection reveals itself.
This is not variability — this is the soul of real hardwood.
